TPR Series Tube/Tubesheet Automatic Robotic Welding Equipment

Name: TPR Series TubeTubesheet Automatic Robotic Welding Equipment
Brand: Huaheng
Price: 1 USD

Brand Name : Huaheng

Model Number : TPR20 Pro

Place of Origin : China

Welding pipe range (mm) : Φ8~Φ110

Rotation speed (rpm) : 0.13~6.75

Maximum wire feed speed(mm/min) : 2500

Torch tilt stroke (°) : -20°~40°

Tilt adjustment speed (°/s) : 30

Arc length slide travel(mm) : 20/40

Contact Now

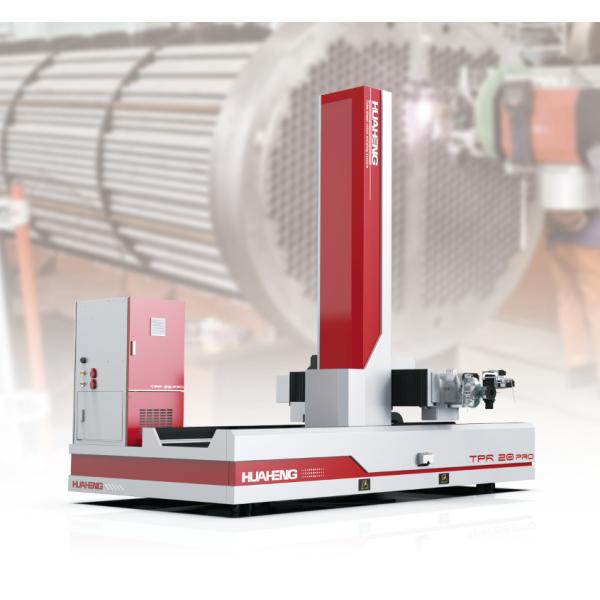

TPR20 Pro Intelligent Tube Sheet Robot Welding System

TPR Series Tube/Tubesheet Automatic Robotic Welding Equipment

Description

Huaheng's latest TPR20 Pro tube sheet robot is a product of intensive research and development aimed at optimising existing functions such as torch positioning, operation, welding levelling and drawing import. The robot is simple, convenient, optimised and of high density to ensure efficient and precise operation. It is a highly integrated robotic welding system specifically designed for the automatic welding of perforated tube parts.

Arc length slider speed (mm/min)	600
Radius adjustment stroke(mm)	60
Radius adjustment speed (mm/min)	900
Horizontal travelling stroke(mm)	2000
Maximum welding current(A)	500A, 60% duty cycle
Weight(T)	3
