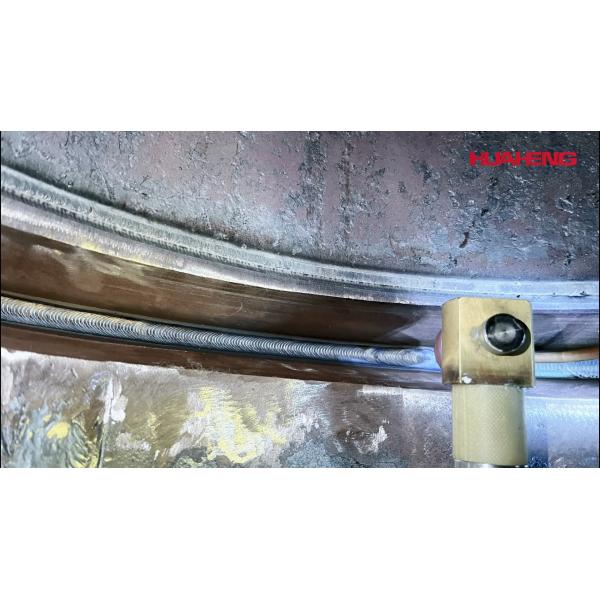

Pipe To Pipe Butt Joint
TIG Orbital Welding System

All-position automatic TIG orbital welding for large diameter pipe butt joints, with cold wire / hot wire DC & pulse capability.

Φ300mm+ Welding range and above

3~20mm Wall thickness

3~5× Hot wire welding efficiency

System overview and applications

The system is specially designed for pipe to pipe butt joint TIG orbital welding, and the welding range could reach Φ300mm and above.

Core functions and capabilities

Cold wire / hot wire TIG DC / pulse all-position automatic welding crawling trolley for large diameter pipe and pipe

Pipes with different diameters are equipped with different positioning guide rings, and the guide rings are driven by rack and pinion

Self-contained integrated wire feeder realizes unwinding wire feeding

Automatic arc length tracking, yaw cover function

The efficiency of hot wire welding is 3~5 times higher than that of cold wire welding

The groove form of the workpiece can be V-shaped or U-shaped

Suitable for welding carbon steel, stainless steel, duplex steel and other alloy materials

Main specifications

Parameter	Specification
Pipe diameter range (mm)	304.8~609.6 (12“~24”)
Wall thickness (mm)	3~20
Welding speed (mm/min)	60~180
Cold wire feeding speed (mm/min)	95~1500
Hot wire feeding speed (mm/min)	360~5500
Wire diameter (mm)	1.0/1.2
Arc length height (mm)	0~40
Yaw width (mm)	0~40
